What is known so far?

On the 29th of March, 2023 SentinelOne, Crowdstrike, and IBM Sophos reported malicious activity of a trojanized version of the 3CX Desktop App, a client used to make VoIP calls.

One day later, on March 30th, it was found that the malicious application was not specially crafted, but was in fact legitimate software published and signed by a certificate belonging to 3CX, a phone system software provider, whose customers include Wilson, Mercedes-Benz, Coca Cola, and many other large enterprises, according to the company’s website. The full consequences of this supply chain incident are yet to be seen.

That same day, the company’s CEO issued an advisory and recommended using 3CX’s PAW client until a new build is released:

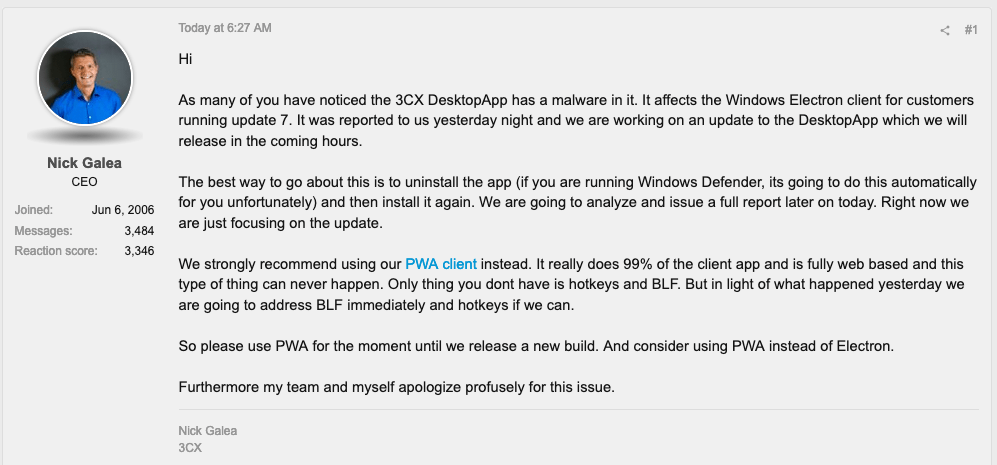

3CX's CEO message screenshot

As part of the attack, the malicious installer deploys legitimate software with malicious libraries. Once the application is launched, a malicious code sleeps and then attempts to download and execute a payload. The payload is unknown at the moment.

According to the 3CX statement, the malicious code was injected via a library: “The issue appears to be one of the bundled libraries that we compiled into the Windows Electron App via GIT”.

If you are using 3CX VoIP in your organisation, it is recommended to check your infrastructure immediately for the signs of intrusion and take the appropriate mitigation measures described in this blog post.

Technical analysis

According to the most recent 3CX statement, versions 18.12.407 & 18.12.416 of its Electron Windows App and versions 18.11.1213, 18.12.402, 18.12.407 & 18.12.416 of the Electron Mac App have been infected.

The following samples, obtained via VirusTotal, were analyzed by Group-IB Threat Intelligence team:

  • 3CXDesktopApp-18.12.416.dmg e6bbc33815b9f20b0cf832d7401dd893fbc467c800728b5891336706da0dbcec
  • 3CXDesktopApp-18.12.416.msi

As it has been discovered, the Windows installer deploys ffmpeg.dll signed by 3CX Ltd with a valid digital signature:

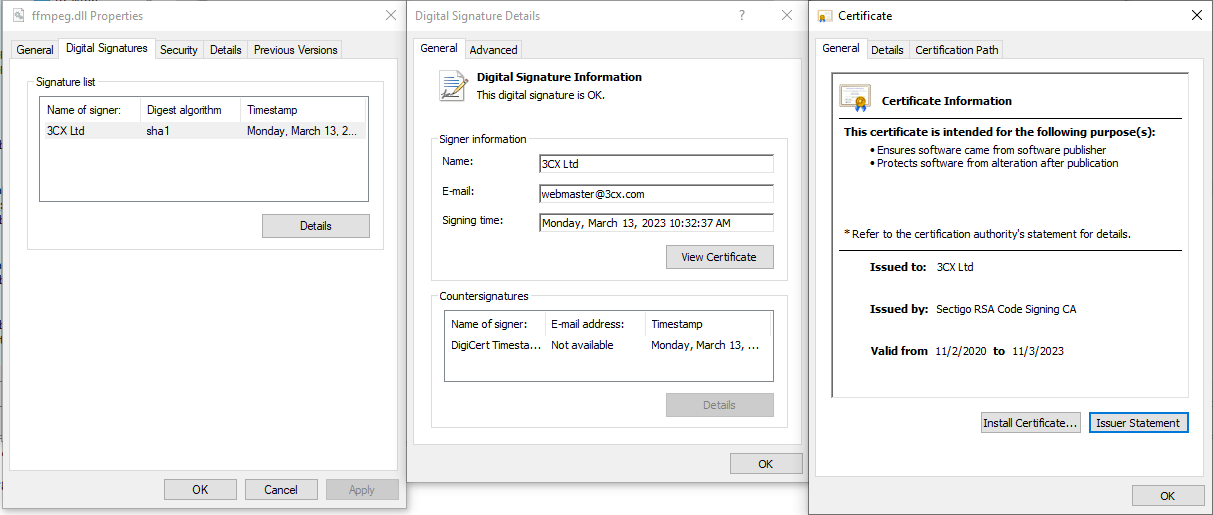

Windows installer deploys ffmpeg.dll signed by 3CX Ltd

The DllEntryPoint leads to the main malicious function, which is responsible for reading the d3dcompiler_47.dll file that has to be located in the same directory as the executable file. This file contains an encrypted shellcode responsible for unpacking and executing the next stage, which is a downloader. It is important to note, that before extracting the shellcode the infected DLL creates an event with the name AVMonitorRefreshEvent. The shellcode itself is located in the second DLL after FEEDFACE bytes:

The code that searches for the start of the shellcode

The code that searches for the start of the shellcode

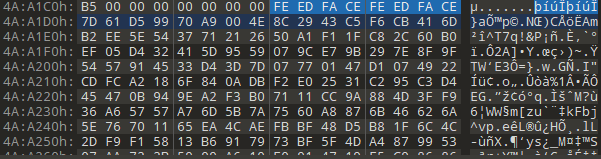

The encrypted version of the shellcode - 3CX

The encrypted version of the shellcode in d3dcompiler_47.dll

It is worth noting that d3dcompiler_47.dll also has a digital signature, but it is non-valid in this case:

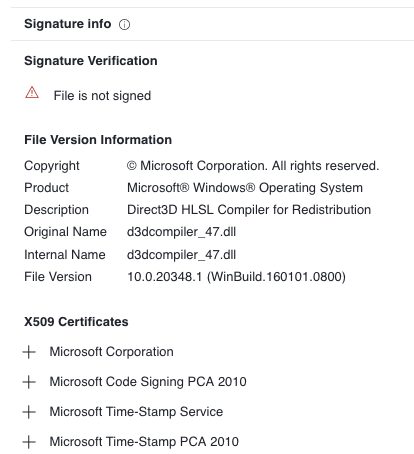

non-valid digital signature - 3CX

The shellcode decryption key is 3jB(2bsG#@c7. The goal of the shellcode is to load an embedded payload, which is a downloader. The first stage, ffmpeg.dll, also passes the following arguments to the next stage:

1200 2400 "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) 3CXDesktopApp/18.11.1197 Chrome/102.0.5005.167 Electron/19.1.9 Safari/537.36"

The downloader is also a DLL file with one export function: DllGetClassObject — it contains all malicious functionality (DllEntryPoint does not perform any activity). First of all, the downloader attempts to open the manifest file which contains 4 bytes representing the time in seconds when the application should launch. This time is generated using the following method:

sleep_time = rand() % 1800000 + first_running_time + 604800;

It is important to note that the range of the rand() function in this case is [0;32767], so the application maximum sleep time is 7.4 days. The file will be created during the first run of the application.

The C2 list is located in .ico-files that are available at: hxxps://raw.githubusercontent[.]com/IconStorages/images/main/icon[1;15].ico. At the time of writing, this GitHub repository was unavailable, however, we managed to find a VirusTotal archive and found this repository in the Wayback machine:

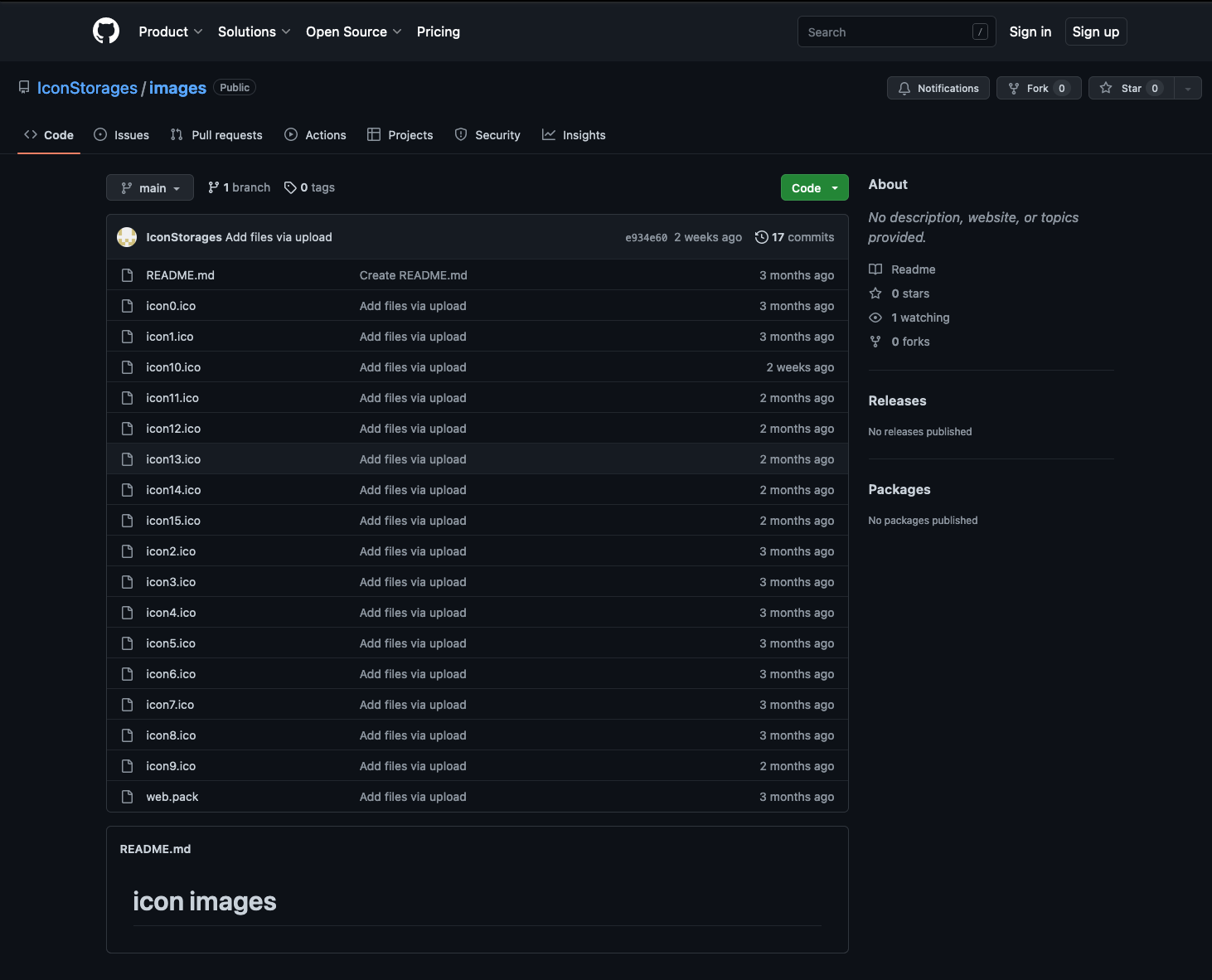

GitHub repository in the Wayback machine

Because of the logic implemented in the downloader, the icon0.ico will never be used. It is possible that the threat actor used this .ico-file during the testing:

for ( i = rand() % 15 + 1; ; i = 0 )

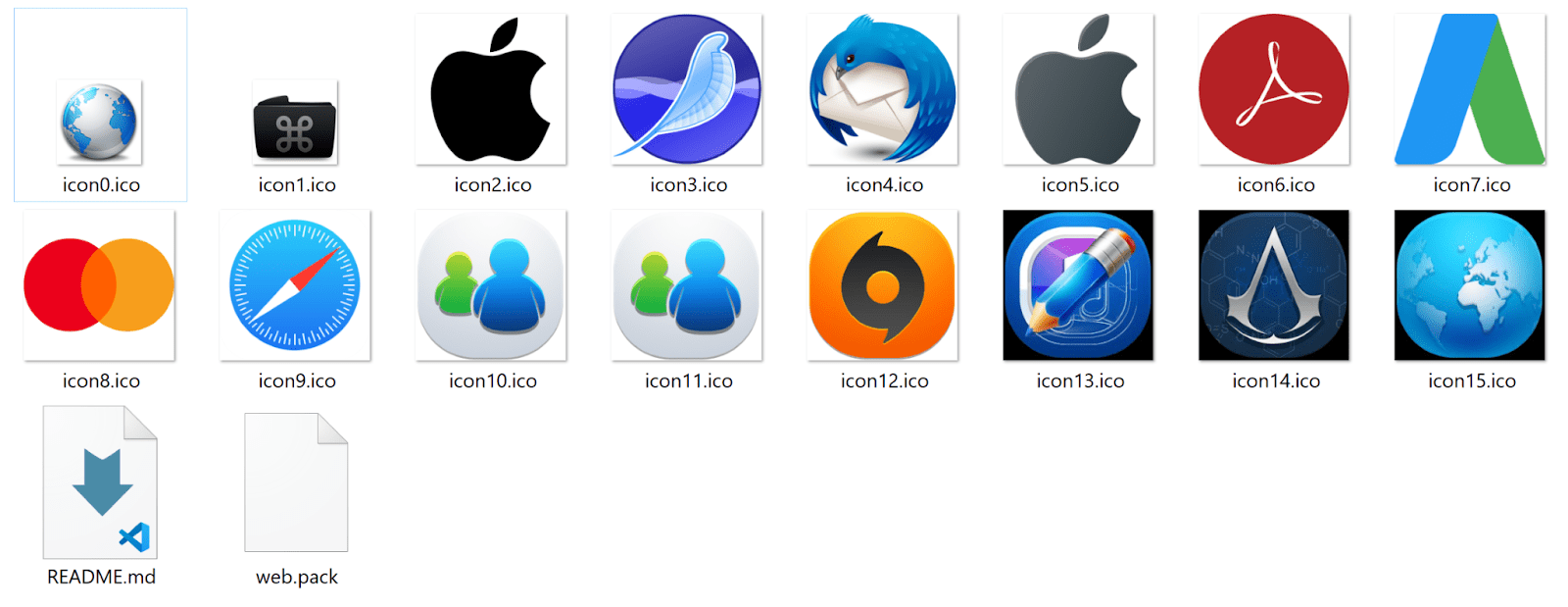

The archive itself contains the following images:

images from archive 3CX

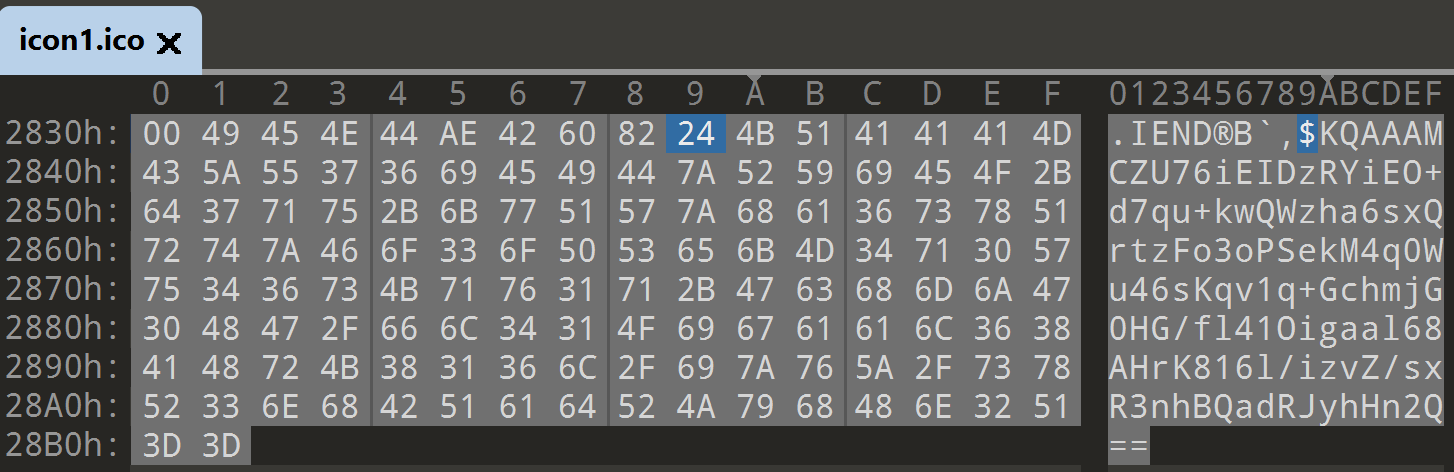

Each image contains C2, encoded in base64 and encrypted:

encrypted images from archive - 3CX

The encoded data is preceded by the $ Symbol. The Group-IB Threat Intelligence team managed to decrypt the .ico-files:

Icon name SHA1 C2
icon1.ico 96910a3dbc194a7bf9a452afe8a35eceb904b6e4 hxxps://msstorageazure[.]com/window
icon2.ico ffccc3a29d1582989430e9b6c6d2bff1e3a3bb14 hxxps://officestoragebox[.]com/api/session
icon3.ico 89827af650640c7042077be64dc643230d1f7482 hxxps://visualstudiofactory[.]com/workload
icon4.ico b5de30a83084d6f27d902b96dd12e15c77d1f90b hxxps://azuredeploystore[.]com/cloud/services
icon5.ico 3992dbe9e0b23e0d4ca487faffeb004bcfe9ecc8 hxxps://msstorageboxes[.]com/office
icon6.ico caa77bcd0a1a6629ba1f3ce8d1fc5451d83d0352 hxxps://officeaddons[.]com/technologies
icon7.ico 57a9f3d5d1592a0769886493f566930d8f32a0fc hxxps://sourceslabs[.]com/downloads
icon8.ico f533bea1c0558f73f6a3930343c16945fb75b20f hxxps://zacharryblogs[.]com/feed
icon9.ico 31d775ab577f3cc88991d90e9ae58501dbe1f0da hxxps://pbxcloudeservices[.]com/phonesystem
icon10.ico 0d890267ec8d6d2aaf43eaca727c1fbba6acd16e hxxps://akamaitechcloudservices[.]com/v2/storage
icon11.ico 0d890267ec8d6d2aaf43eaca727c1fbba6acd16e hxxps://akamaitechcloudservices[.]com/v2/storage
icon12.ico b1dee3ebcffad01a51ff31ff495fef1d40fdfaa0 hxxps://azureonlinestorage[.]com/azure/storage
icon13.ico 64ab912d0af35c01355430d85dd4181f25e88838 hxxps://msedgepackageinfo[.]com/microsoft-edge
icon14.ico 8377fb40c76aa3ba3efae3d284fa51aa7748e010 hxxps://glcloudservice[.]com/v1/console
icon15.ico 11ae67704ea0b930b2cc966e6d07f8b898f1a7d2 hxxps://pbxsources[.]com/exchange

Also the repository contained a file named web.pack, but its purpose is unknown. We suppose that this file is encrypted and could be used in a kill chain.

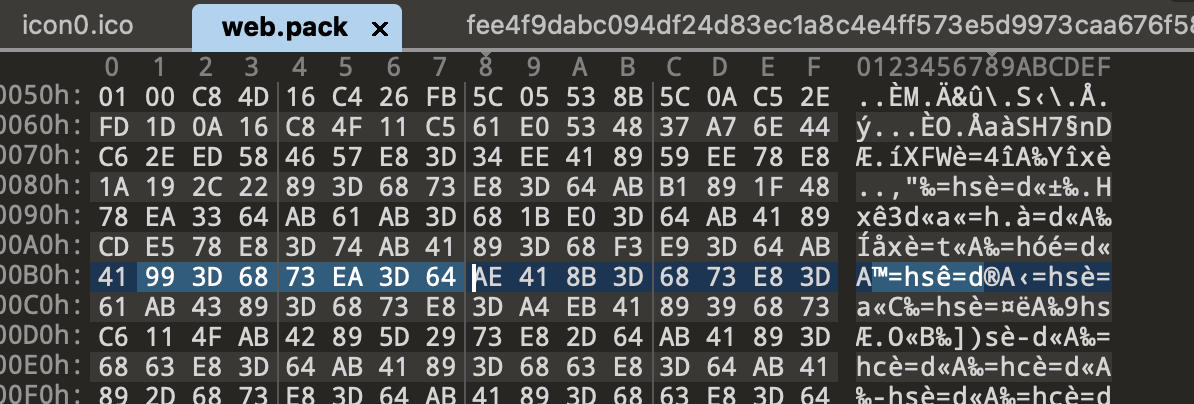

encrypted web pack file

The sequence of bytes highlighted above appears frequently in the file, but it hasn’t been encrypted at the time of writing.

One of the notable features of the downloader is how it fills a header of the request:

accept: */*
accept-language: en-US,en;q=0.9
accept-encoding: gzip, deflate, br
content-type: text/plain

And it can also optionally add the cookie field:

cookie: %data%=%data%

A payload will be executed in the context of the infected process.

Malicious 3CX app for MacOS

Compared to the Windows version of the 3CX app, its Mac OS version has a slightly different logic. The application contains libffmpeg.dylib with two sublibs inside: for arm64 and x86_64 code. The malicious code is implemented under _run_avcodec() which can be found only in x86_64 sublib. ARM64 version doesn’t contain the malicious code. URLs of the next stage are hardcoded into the library XORed with 0x7A.

The following headers are used when sending requests to C2: z3cx_auth_id=%s;3cx_auth_token_content=%s;__tutma=true

C2s of the MacOS version:

  • msstorageazure[.]com/analysis
  • officestoragebox[.]com/api/biosync
  • visualstudiofactory[.]com/groupcore
  • azuredeploystore[.]com/cloud/images
  • msstorageboxes[.]com/xbox
  • officeaddons[.]com/quality
  • sourceslabs[.]com/status
  • zacharryblogs[.]com/xmlquery
  • pbxcloudeservices[.]com/network
  • pbxphonenetwork[.]com/phone
  • akamaitechcloudservices[.]com/v2/fileapi
  • msedgepackageinfo[.]com/ms-webview
  • glcloudservice[.]com/v1/status
  • pbxsources[.]com/queue
Domain Registrar Date
msstorageazure[.]com NAMECHEAP 2022-11-17
officestoragebox[.]com NAMECHEAP 2022-11-17
visualstudiofactory[.]com NAMECHEAP 2022-11-17
azuredeploystore[.]com NameSilo 2022-12-07
msstorageboxes[.]com NAMECHEAP 2022-12-09
officeaddons[.]com PublicDomainRegistry.com 2022-12-09
sourceslabs[.]com ENOM 2022-12-09
zacharryblogs[.]com NAMECHEAP 2022-12-13
pbxcloudeservices[.]com PublicDomainRegistry.com 2022-12-23
akamaitechcloudservices[.]com NAMECHEAP 2023-01-04
azureonlinestorage[.]com PublicDomainRegistry.com 2023-01-05
msedgepackageinfo[.]com NameSilo 2023-01-05
glcloudservice[.]com NAMECHEAP 2023-01-06
pbxsources[.]com NAMECHEAP 2023-01-04
pbxphonenetwork[.]com NameSilo 2022-12-25

Crowdstrike and other cybersecurity companies reported additional domain names, but we cannot confirm their usage.

At the moment of writing, Group-IB didn’t find or retrieve the payload.

Am I in danger? The to do list

According to the 3CX security alert Electron Windows App versions numbers 18.12.407 & 18.12.416 and Electron Mac App version numbers 18.11.1213, 18.12.402, 18.12.407 & 18.12.416 are malicious. MITRE has assigned the CVE-2023-29059 identifier to the supply chain attack and linked it to the CWE-506 weakness described as ‘Embedded Malicious Code.’

Recommendations for 3CX customers:

  1. Identify any employees using affected versions of the 3CX app
  2. Ensure you have the latest update installed. The updated version 18.12.422 of the Windows desktop app and the Mac desktop app has been released by 3CX.

If your employees have used the desktop app, the best option is to uninstall the software (the detailed guide can be found here). Incident response should be conducted in order to identify malicious activities and proper remediation should be carried out.

You can follow these simple steps to understand if a compromised version of the 3CX application is/was present in your infrastructure to identify malicious activity:

  1. Check for the presence of files that match the hashes provided in the IoC section.
  2. If you have an [EMX]DR solution, search for connections to the identified URLs and domain names.
    Sigma and YARA rules also can be used for DNS event searching.
  3. On MacOS check for .session-lock , .main-storage and UpdateAgent files. Presence of such files in the 3CX application directory with high probability indicates that the second stage of malware was executed. You can use simple bash script suggested by anschluss.
for f in $(find /Users -type d -maxdepth 1 -mindepth 1); \
do \
  test -d $f/Library/Application\ Support/3CX\ Desktop\ App && echo "$f: found 3CX app user LAS folder";
  test -f $f/Library/Application\ Support/3CX\ Desktop\ App/UpdateAgent && echo "$f: found UpdateAgent"; \
  test -f $f/Library/Application\ Support/3CX\ Desktop\ App/.main_storage && echo "$f: found .main_storage"; \
  test -f $f/Library/Application\ Support/3CX\ Desktop\ App/.session-locks && echo "$f: found .session-lock"; \

4. You can use YARA rules by Florian Roth to search for malicious signs.
5. In order to perform threat hunting if you don’t have automated detections implemented, you can utilize your EDR telemetry to search for the following traces:

  • look for DLL loading events by 3CXDesktopApp (ffmpeg.dll and d3dcompiler_47.dll are known to be trojanized, but other yet unknown DLL names may be considered); test found files against Virustotal or aforementioned yara rules;
  • look for DNS events produced by 3CXDesktopApp; it is currently known that the payload connects to github.com, but any other cloud-based service should be considered as being abused by the threat actor for the same goal;
  • monitor for hands-on attacker’s activity; expect basic reconnaissance commands executed by 3CXDesktopApp seen in process creation telemetry and files created by 3CXDesktopApp in file creation telemetry;
  • monitor for hands-on attacker’s activity; expect basic reconnaissance commands executed by 3CXDesktopApp seen in process creation telemetry and files created by 3CXDesktopApp in file creation telemetry.


HTTPS beacon structure and encryption key match those observed by CrowdStrike in a March 7, 2023 campaign attributed with high confidence to DPRK-nexus threat actor LABYRINTH CHOLLIMA (aka Lazarus) — CrowdStrike reports.

According to Sophos researchers, they “cannot verify this attribution with a high degree of certainty.” Volexity has described the second stage of the payload. However they mentioned that they cannot currently map the disclosed activity to any threat actor, so it will be tracked under UTA0040.

The Twitter thread also reveals some similarities with the activity of North Korean threat actors, however the pieces of evidence are still not strong enough to confirm the link.

Group-IB researchers also do not yet see obvious links with existing threat clusters. We will provide an update if more information becomes available.

How Group-IB technologies can help

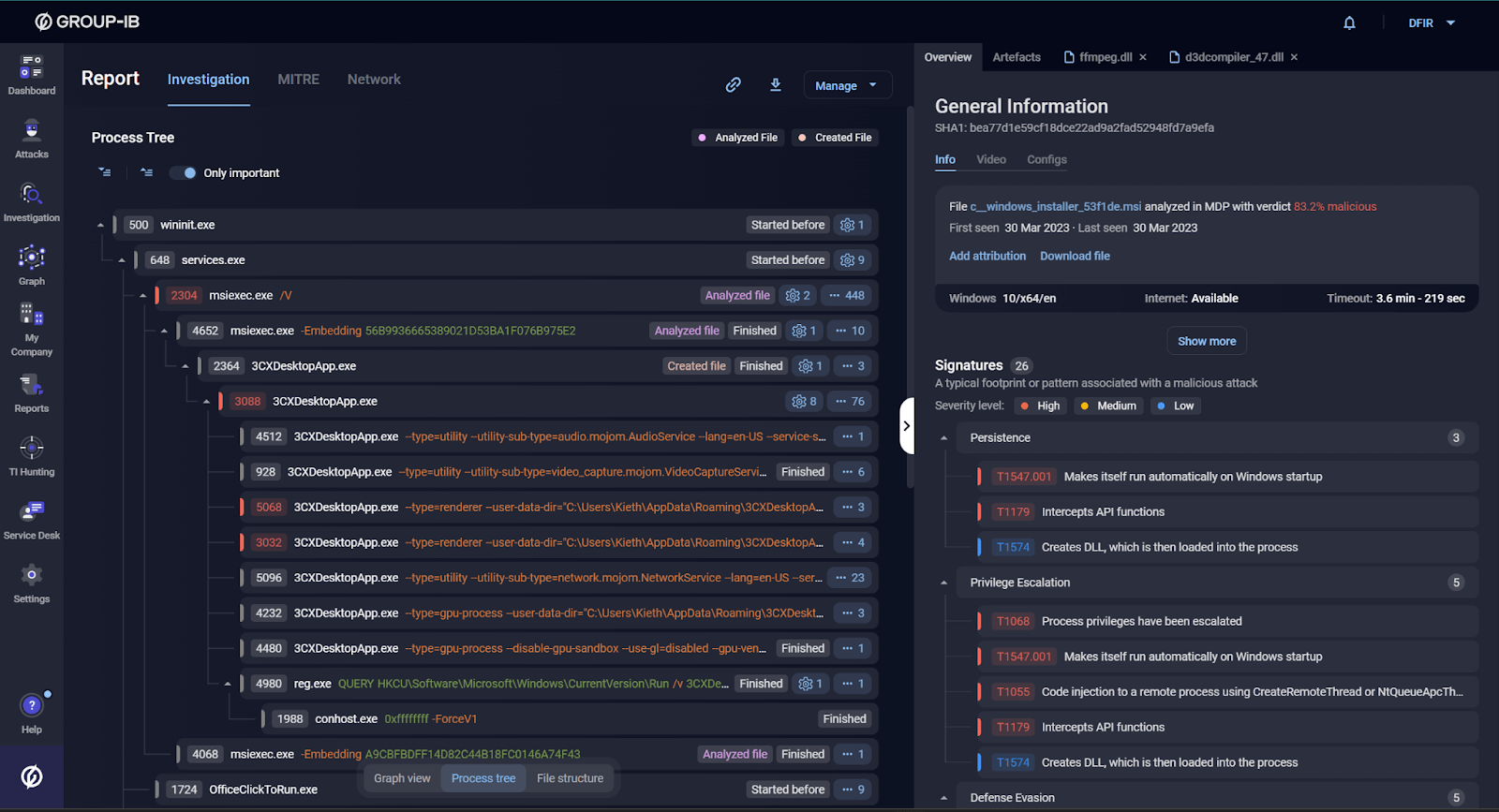

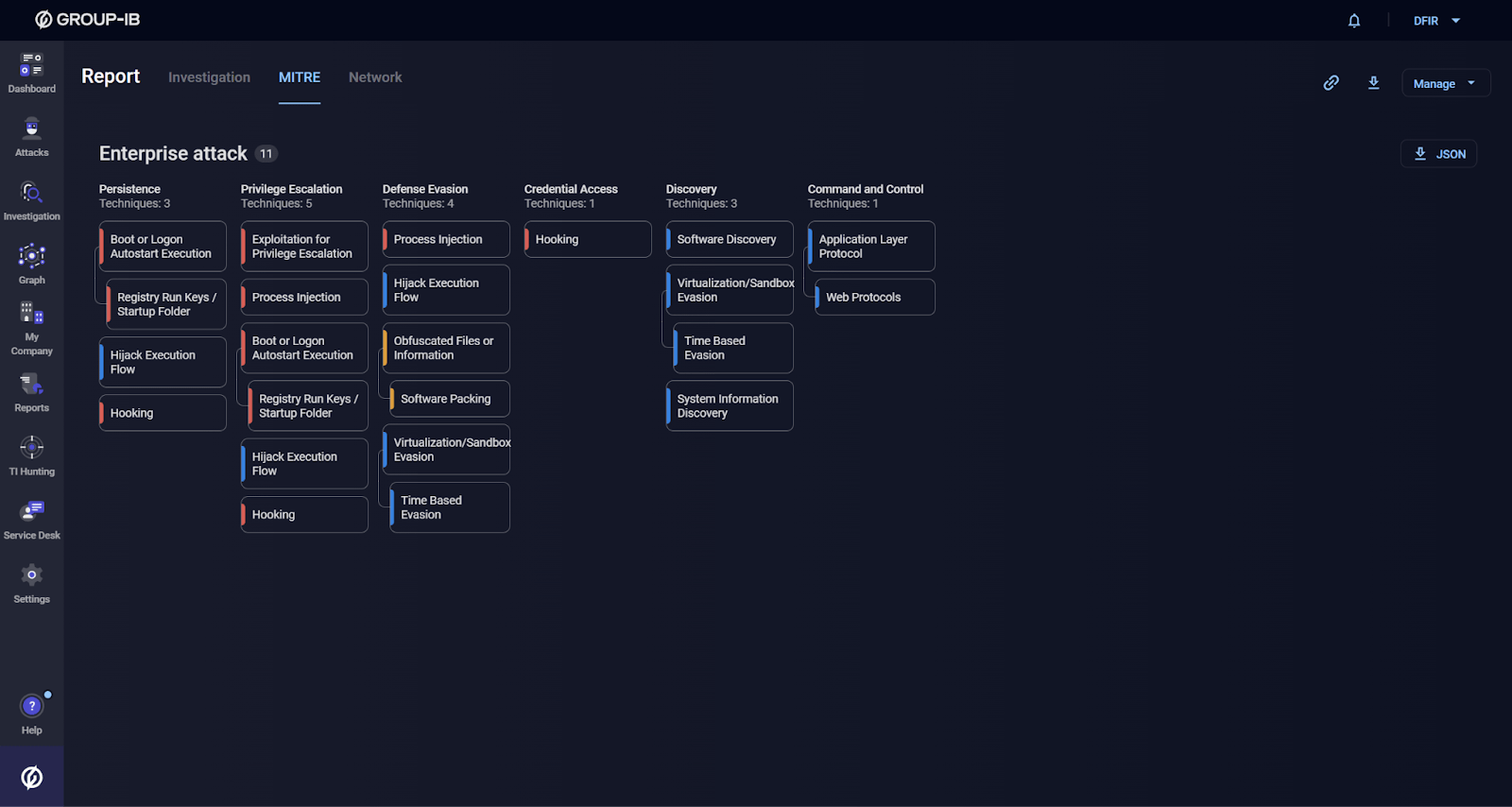

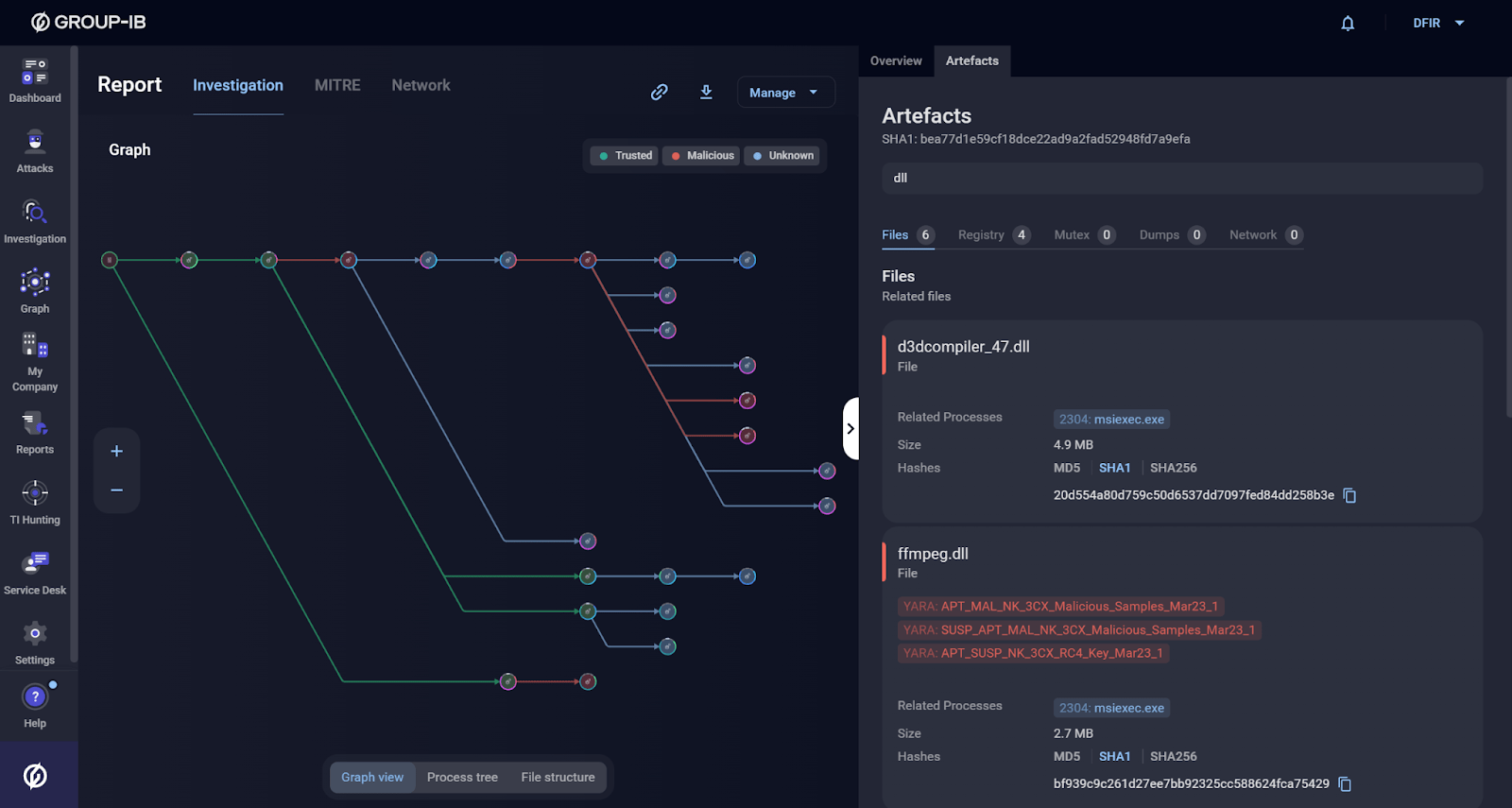

Group-IB Managed Extended Detection and Response (MXDR) detects and automatically blocks malicious 3CX executables as of March 30, 2023. Below you can find how Group-IB’s Malware Detonation Platform (part of MXDR) detects this threat:

Group-IB EDR solution is capable of providing comprehensive telemetry data that can be used to search for trojanized DLL files:

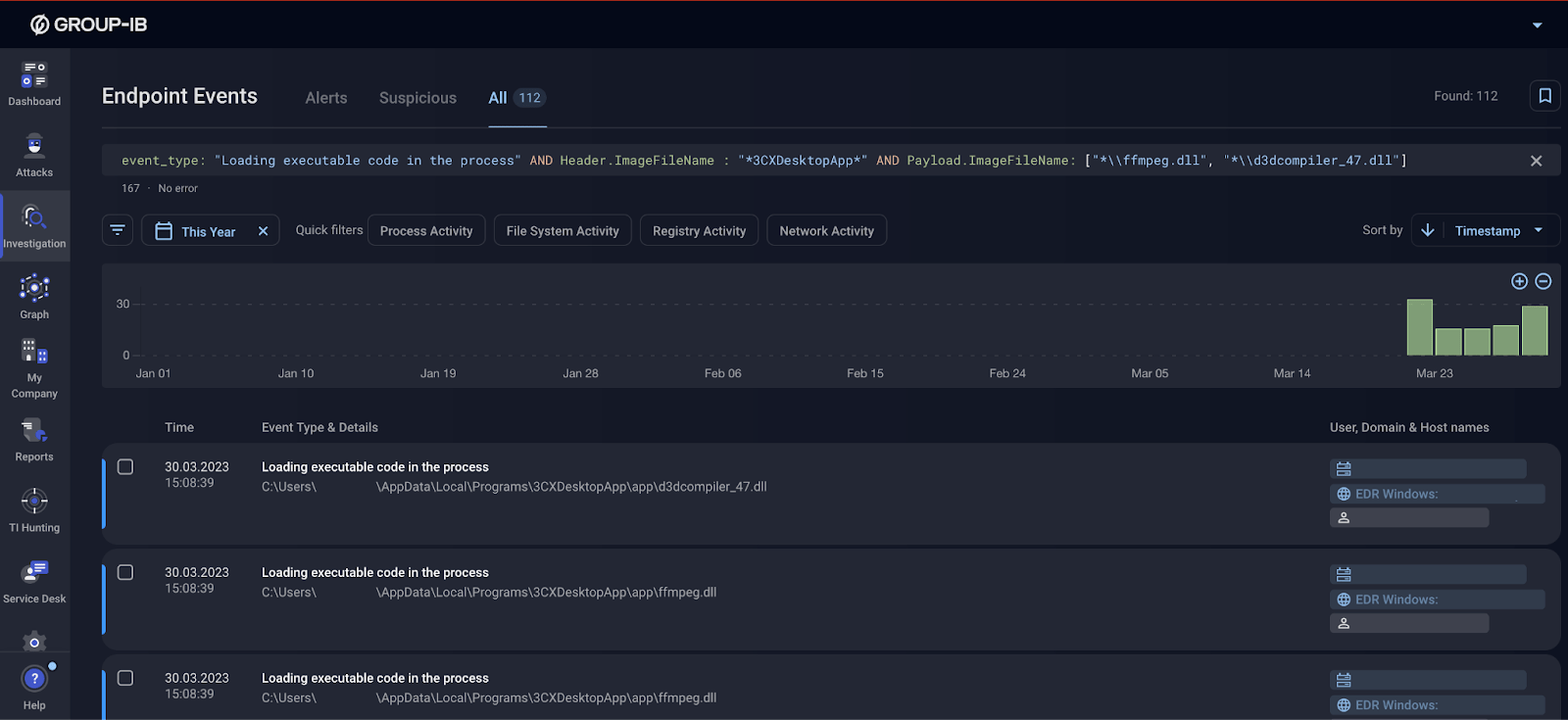

search for trojanized DLL files

For organisations that have a mature cybersecurity program, we suggest taking a closer look at our Threat Intelligence solution.

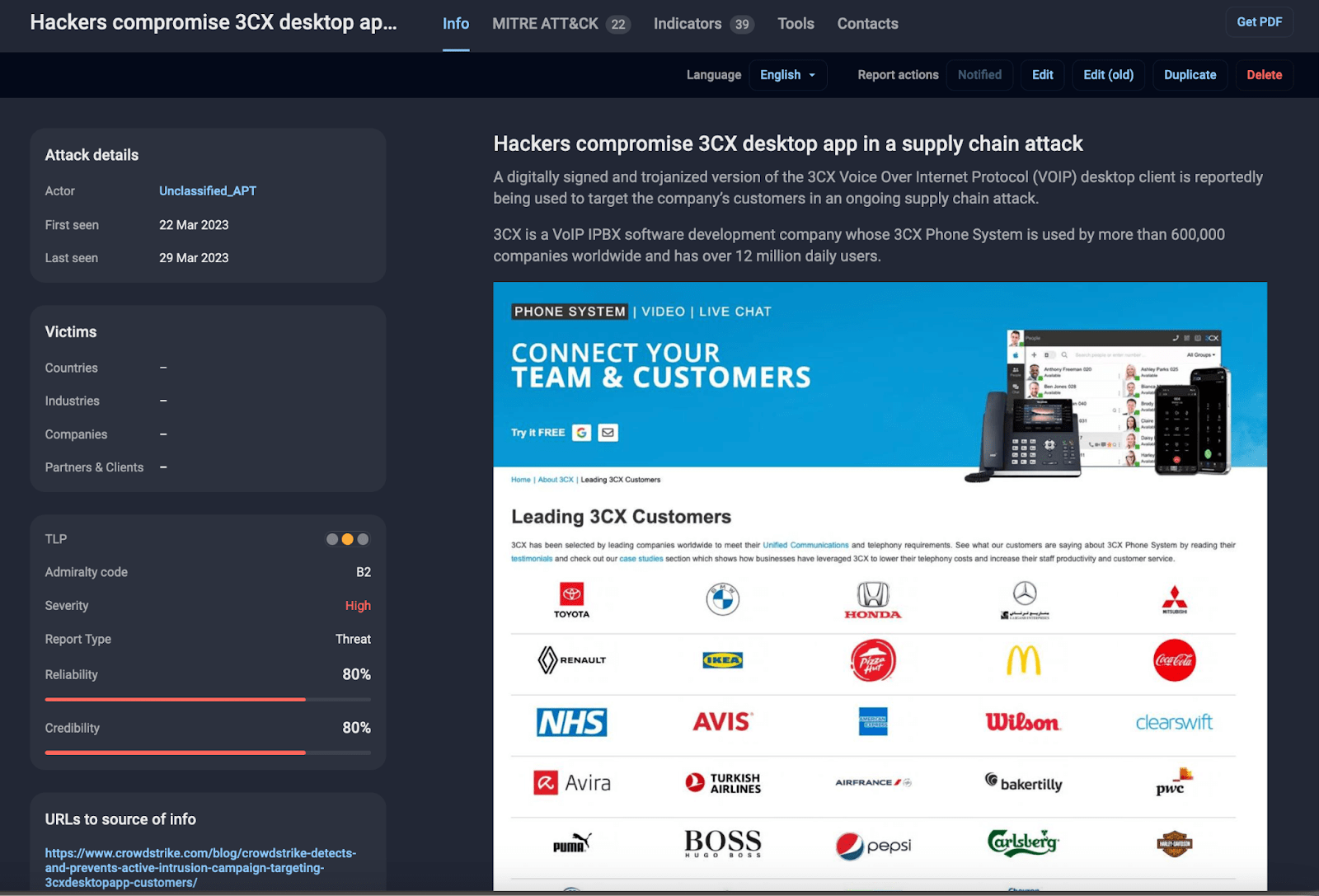

Threat description available to the users of Group-IB Threat Intelligence platform

Threat description available to the users of Group-IB Threat Intelligence platform

Indicators of compromise

Below you can find a list of Indicators of compromise linked to the 3CX supply chain incident, collected by Group-IB Threat Intelligence unit and other industry researchers. This section will be constantly updated as new data becomes available.

FS objects

event “AVMonitorRefreshEvent”

~/Library/Application Support/3CX Desktop App/UpdateAgent
~/Library/Application Support/3CX Desktop App/.main_storage
~/Library/Application Support/3CX Desktop App/.session-locks

ca8c0385ce2b8bdd19423c8b98a5924b f3487a1324f4c11b35504751a5527bc60eb95382 b86c695822013483fa4e2dfdf712c5ee777d7b99cbad8c2fa2274b133481eadb
27b134af30f4a86f177db2f2555fe01d 188754814b37927badc988b45b7c7f7d6b4c8dd3 c485674ee63ec8d4e8fde9800788175a8b02d3f9416d0e763360fff7f8eb4e02
5729fb29e3a7a90d2528e3357bd15a4b 19f4036f5cd91c5fc411afc4359e32f90caddaac 5407cda7d3a75e7b1e030b1f33337a56f293578ffa8b3ae19c671051ed314290
d5101c3b86d973a848ab7ed79cd11e5a 3dc840d32ce86cebf657b17cef62814646ba8e98 e6bbc33815b9f20b0cf832d7401dd893fbc467c800728b5891336706da0dbcec
0eeb1c0133eb4d571178b2d9d14ce3e9 bfecb8ce89a312d2ef4afc64a63847ae11c6f69e 59e1edf4d82fae4978e97512b0331b7eb21dd4b838b850ba46794d9c7a2c0983
3703770e32820397c6e7e1e1221e6d0d 5d833bcc679db38a45111269e727ec58b75c8d31 92005051ae314d61074ed94a52e76b1c3e21e7f0e8c1d1fdd497a006ce45fa61
2fdf61fdfd649f8bbf5730307a0ab5d1 b2a89eebb5be61939f5458a024c929b169b4dc85 fee4f9dabc094df24d83ec1a8c4e4ff573e5d9973caa676f58086c99561382d7
bb915073385dd16a846dfa318afa3c19 6285ffb5f98d35cd98e78d48b63a05af6e4e4dea dde03348075512796241389dfea5560c20a3d2a2eac95c894e7bbed5e85a0acc
9833a4779b69b38e3e51f04e395674c6 8433a94aedb6380ac8d4610af643fb0e5220c5cb fad482ded2e25ce9e1dd3d3ecc3227af714bdfbbde04347dbc1b21d6a3670405
660ea9b8205fbd2da59fefd26ae5115c 769383fc65d1386dd141c960c9970114547da0c2 a64fa9f1c76457ecc58402142a8728ce34ccba378c17318b3340083eeb7acc67
82187ad3f0c6c225e2fba0c867280cc9 20d554a80d759c50d6537dd7097fed84dd258b3e 11be1803e2e307b647a8a7e02d128335c448ff741bf06bf52b332e0bbf423b03
74bc2d0b6680faa1a5a76b27e5479cbc bf939c9c261d27ee7bb92325cc588624fca75429 7986bbaee8940da11ce089383521ab420c443ab7b15ed42aed91fd31ce833896
f3d4144860ca10ba60f7ef4d176cc736 bea77d1e59cf18dce22ad9a2fad52948fd7a9efa aa124a4b4df12b34e74ee7f6c683b2ebec4ce9a8edcf9be345823b4fdcf5d868
11bc82a9bd8297bd0823bce5d6202082 894e7d4ffd764bb458809c7f0643694b036ead30 f79c3b0adb6ec7bcc8bc9ae955a1571aaed6755a28c8b17b1d7595ee86840952
7faea2b01796b80d180399040bb69835 3b3e778b647371262120a523eb873c20bb82beaf 8ab3a5eaaf8c296080fadf56b265194681d7da5da7c02562953a4cb60e147423
6426fe4dc604c7f1784ed1d48ab4ffc8 3b88cda62cdd918b62ef5aa8c5a73a46f176d18b aa4e398b3bd8645016d8090ffc77d15f926a8e69258642191deb4e68688ff973
11bd685041d98d392df3d95f96d96dc1 f7f1b34c2770d83e2250e19c8425a4bec56617fd 7c55c3dfa373b6b342390938029cb76ef31f609d9a07780772c6010a4297e321
cb01ff4809638410a531400a66376fa3 ff3dd457c0d00d00d396fdf6ebe7c254fed2a91e 253f3a53796f1b0fbe64f7b05ae1d66bc2b0773588d00c3d2bf08572a497fa59
83cba55f180b0c100935137615e8d296 7a1d41c8e9e4bd19e0e360ec17e30c38e4f9ca0d 82a2dafd6ce594f2cf8588f32585c71be2180fc4cf9a144e300b1692f3de5807

Bold hashes indicate that they were observed in our analysis, other files were taken from reports Volexity, SentinelOne and @dodo_sec.

Network indicators

Bold domains indicate that they were observed in our analysis, other files were taken from reports Volexity, SentinelOne and CrowdStrike.
